TECHNOPLAN Articulate Arm Magnetic Base for Dial Indicator – 300 mm Reach

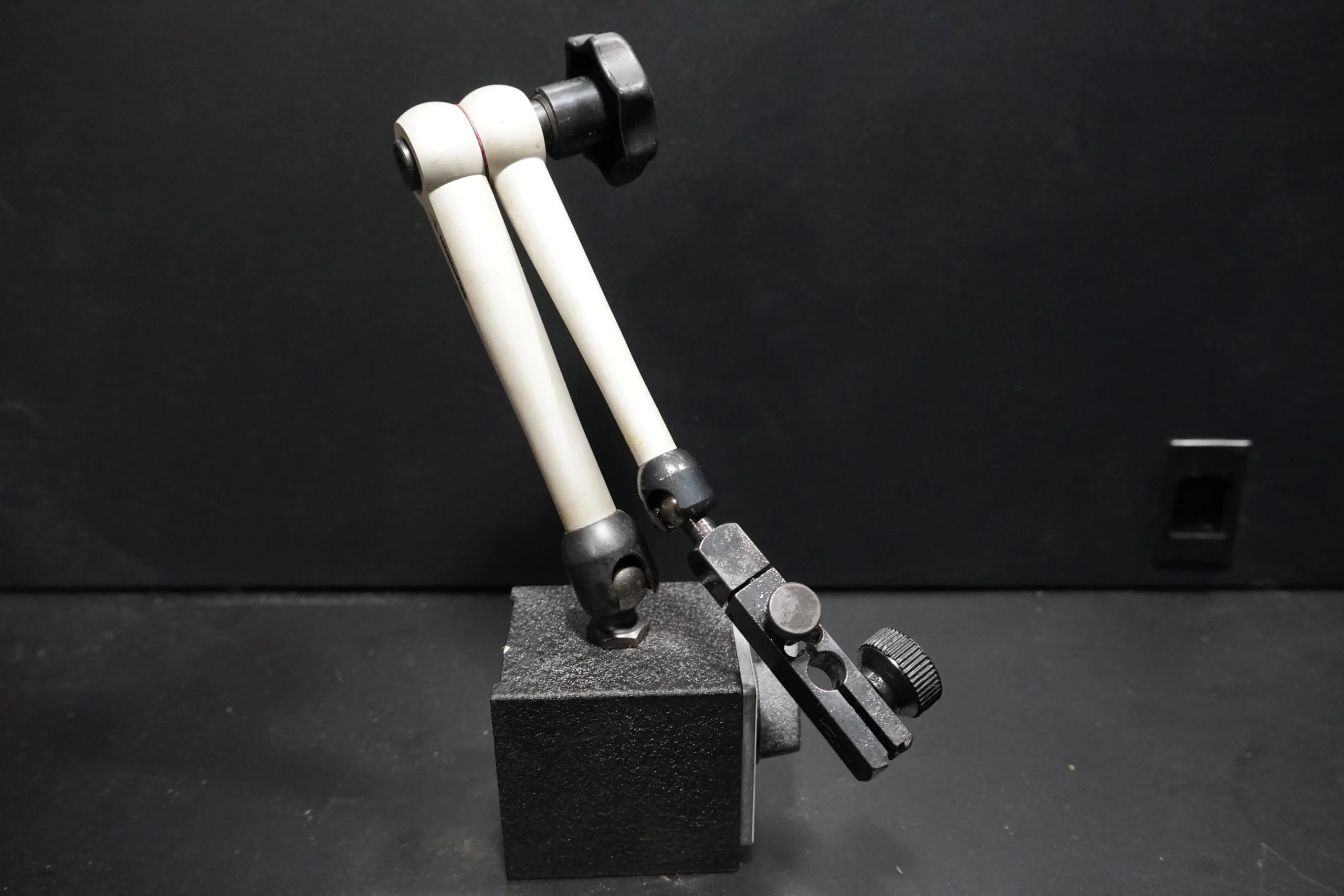

A Japanese‑made articulated indicator stand from TECHNOPLAN, this magnetic base and arm assembly is built for precision measurement setups on mills, lathes, grinders, and inspection tables. With a strong on/off magnetic base and a 300 mm articulated arm, the unit provides stable, repeatable positioning for dial indicators, test indicators, and other metrology attachments where rigidity and fine adjustment matter.

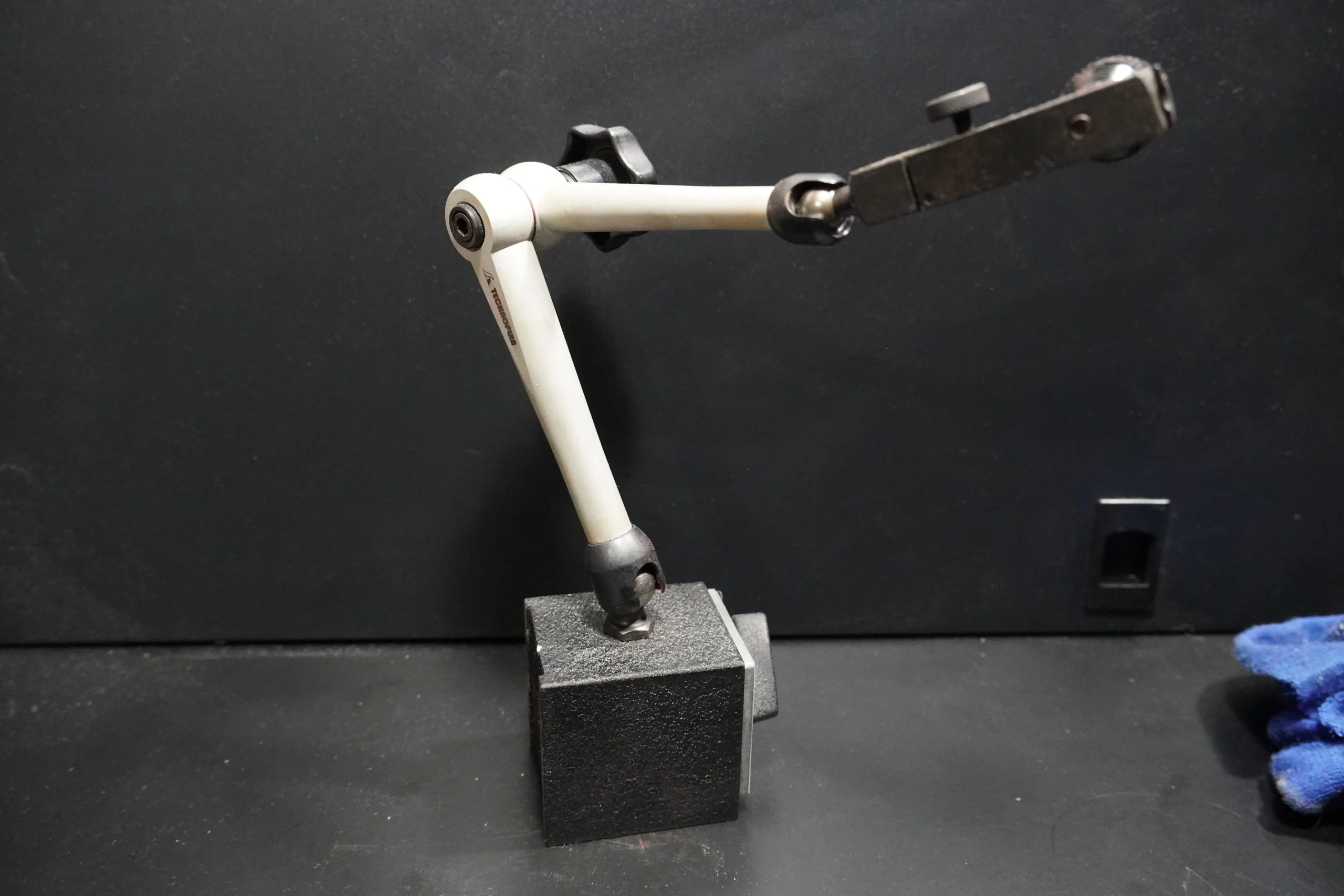

The multi‑joint arm allows fast, flexible positioning in tight spaces — ideal for setups on milling vises, lathe cross slides, surface plates, and machine tables. TECHNOPLAN stands are known for smooth joint movement, reliable clamping force, and consistent indicator seating, making this a practical choice for machinists who need dependable metrology gear without paying premium‑brand pricing.

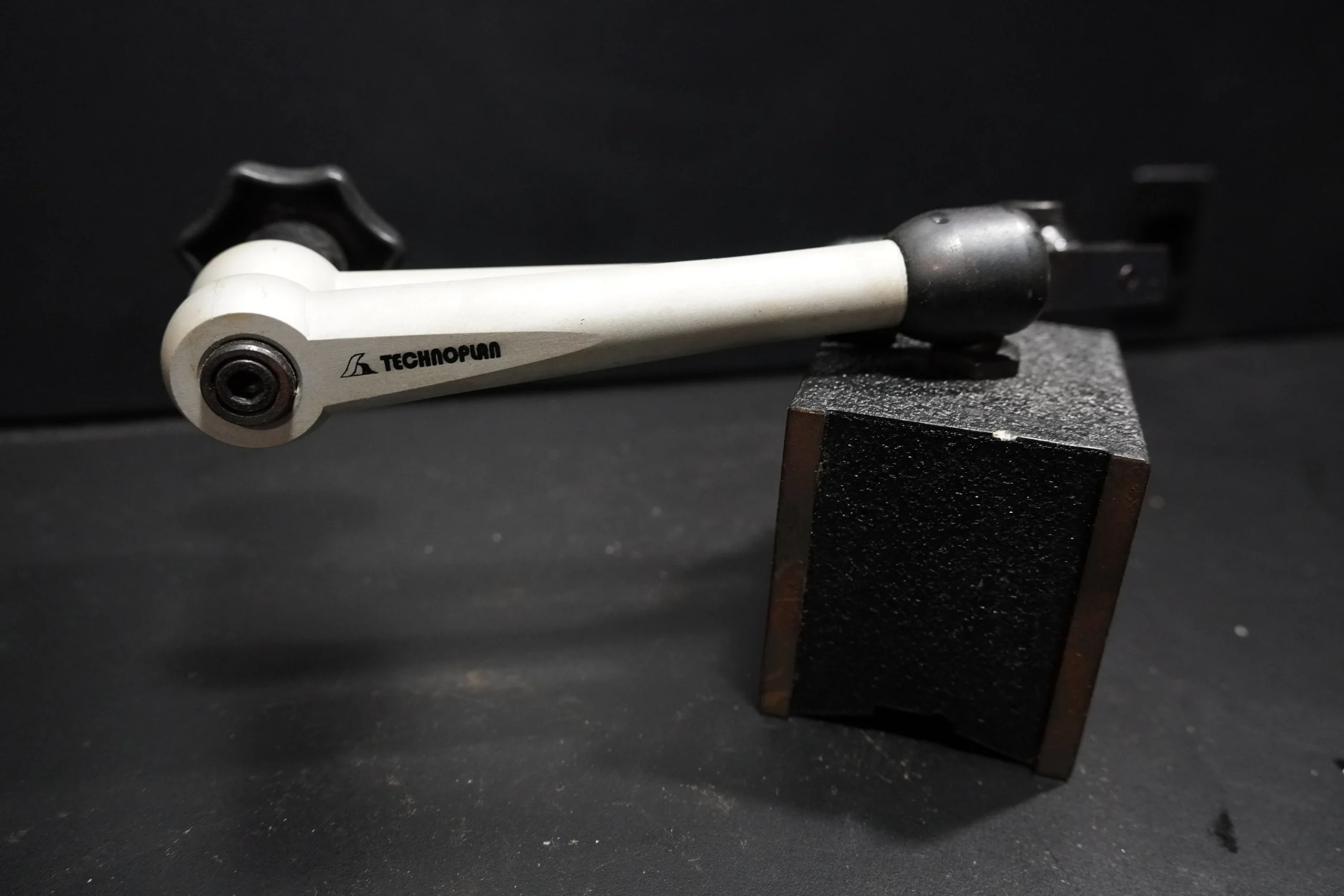

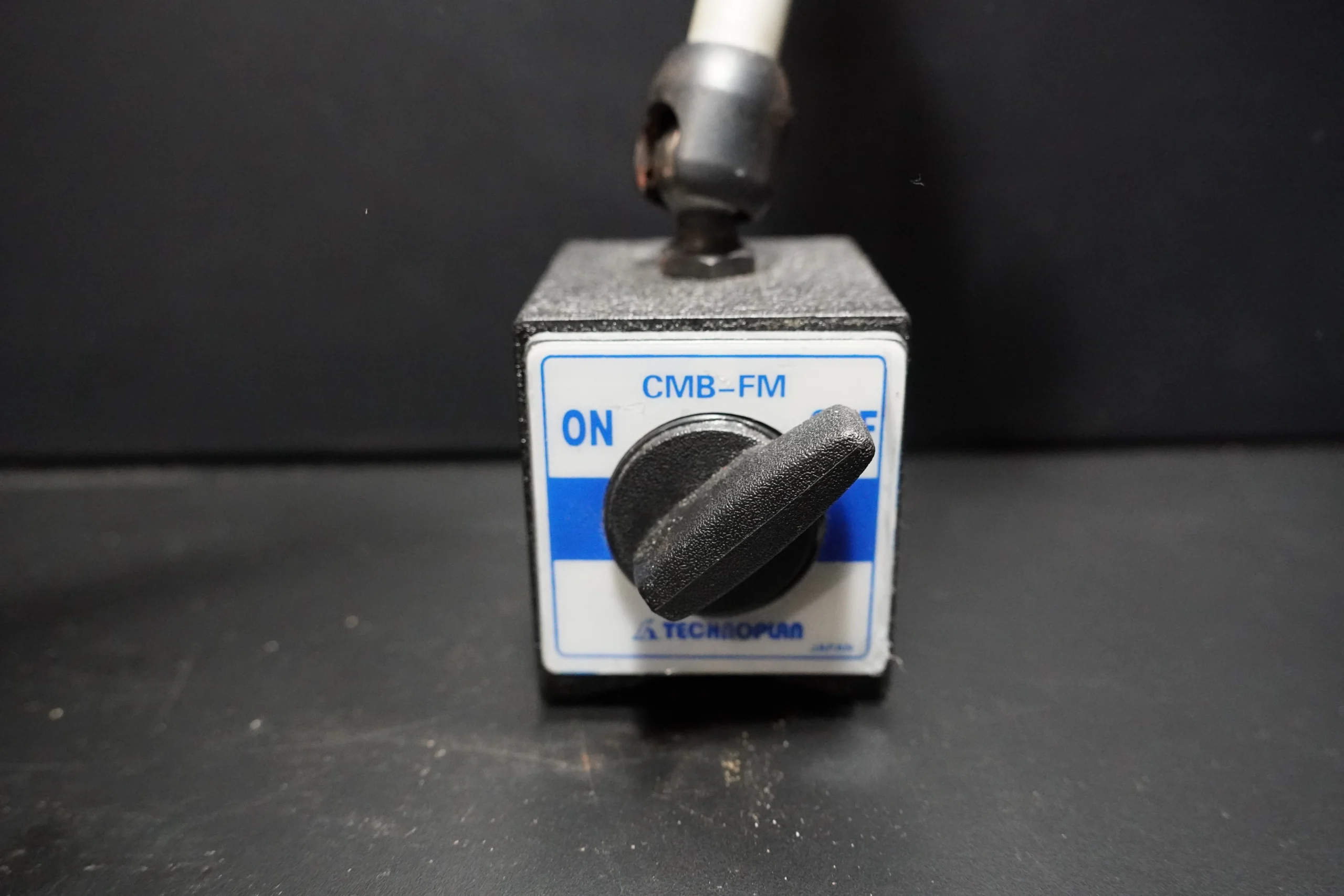

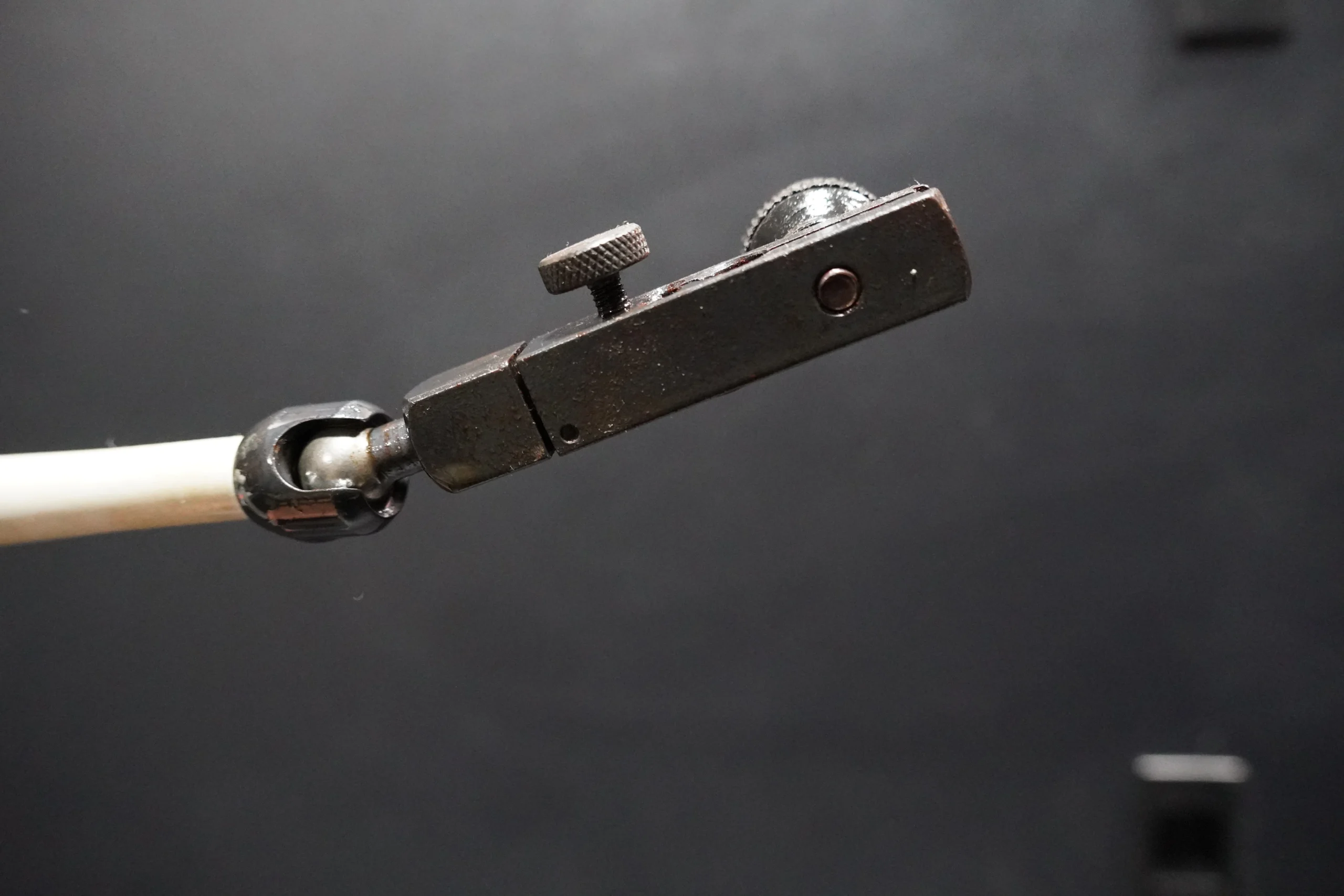

The extended 300 mm reach lets you position indicators deep into fixtures or around workholding hardware while maintaining a locked, vibration‑resistant setup. The on/off magnetic base secures to cast iron and steel surfaces and releases easily via the lever for quick repositioning. The clamp accepts standard 8 mm stems and dovetail mounts, ensuring compatibility with most dial and test indicators.
Ideal for lathe alignment checks, mill tram setups, bore measurement, fixture inspection, toolroom metrology, and general workshop measurement tasks.
Features and Performance
Articulated 300 mm arm — Multi‑joint design for flexible reach and precise positioning. Strong on/off magnetic base — Secure adhesion to machine tables and surface plates with easy release lever. Universal indicator compatibility — Accepts standard 8 mm stems and dovetail mounts for broad indicator compatibility. Smooth joints and firm locks — Joints move freely for setup and clamp solidly for stable measurement. Workshop durability — Robust construction suited to everyday use in machining and inspection environments.
Included
• 1 × TECHNOPLAN Articulate Arm Magnetic Base (300 mm reach) • No indicator included • No additional accessories supplied
Not included: Dial indicator, test indicator, clamp key, storage case.
Brand Information
TECHNOPLAN is a Japanese manufacturer of metrology accessories and precision workshop tooling, producing magnetic bases, indicator stands, and measurement fixtures used across machining, inspection, and toolroom environments. Their products are valued for stable geometry, smooth adjustment, and long‑term durability, offering practical performance for machinists who want reliable measurement setups without the premium price of top‑tier brands.
