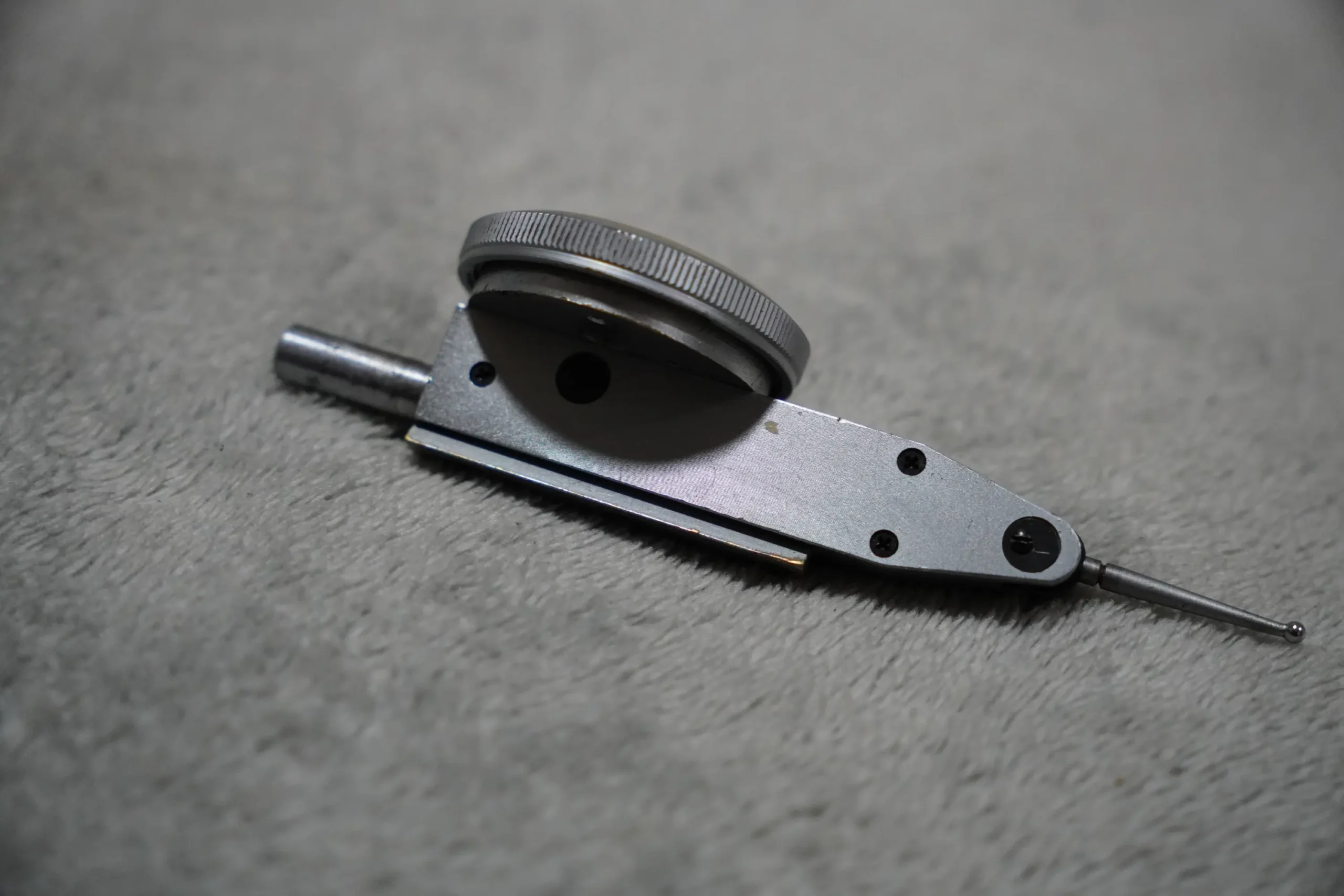

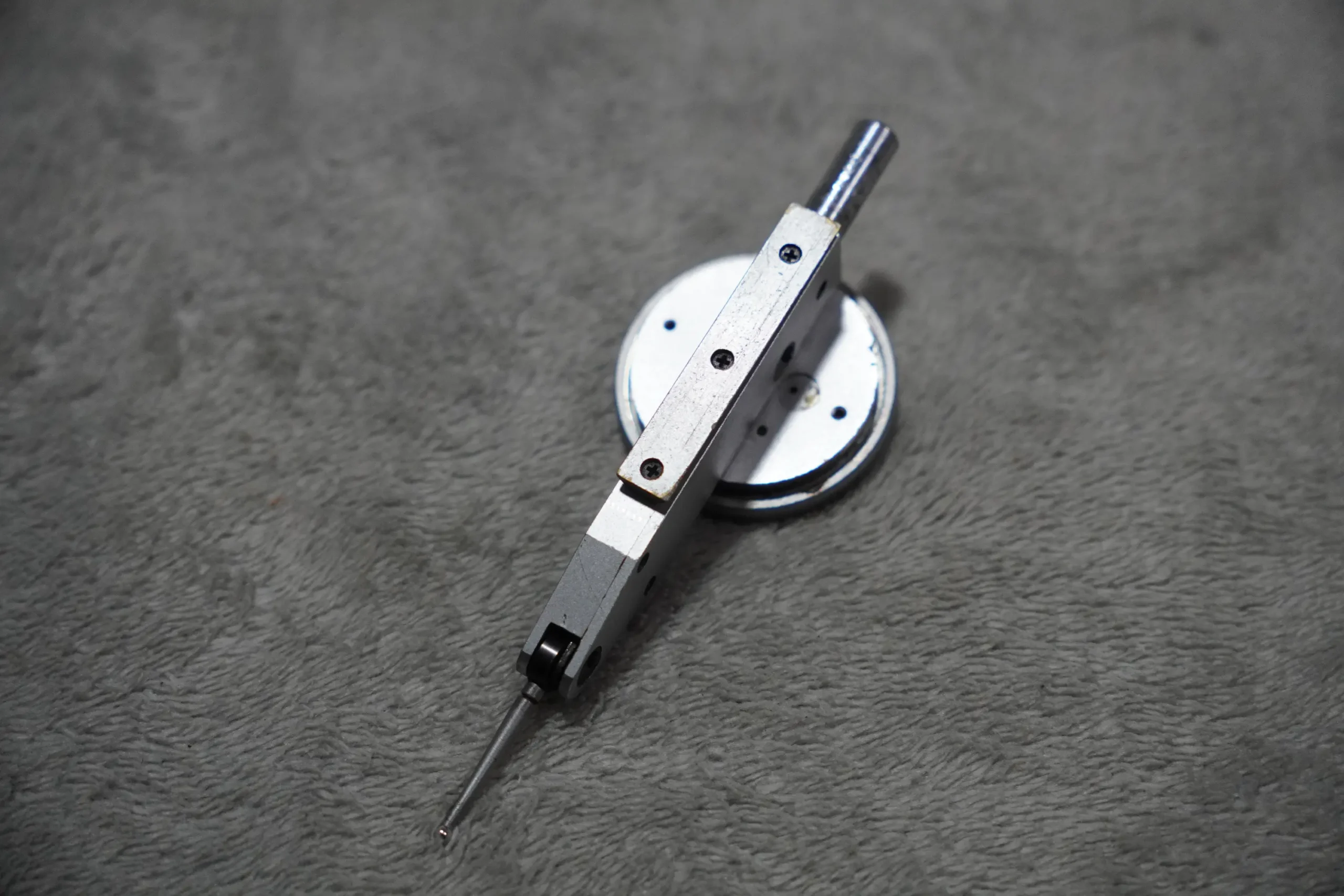

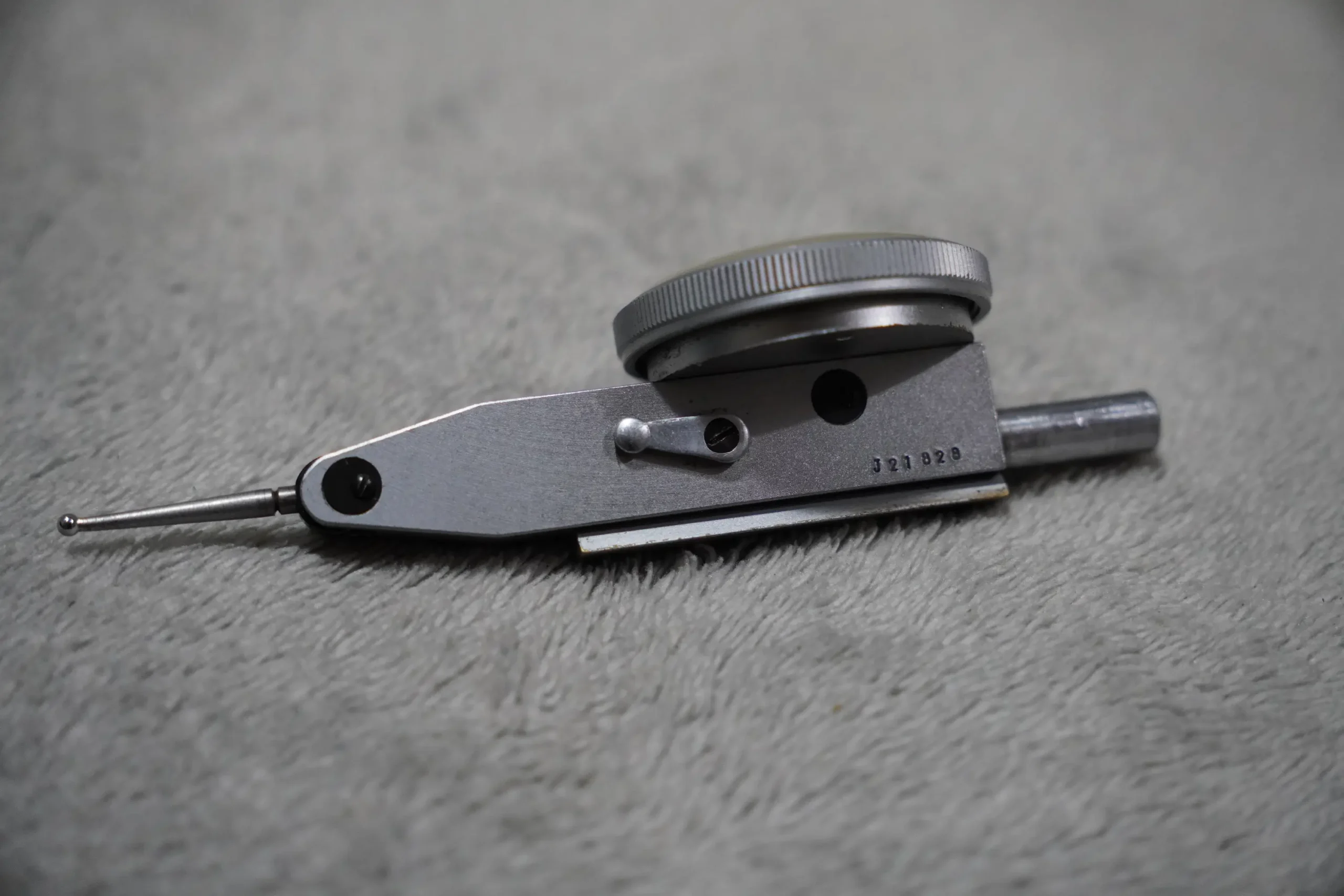

PEACOCK PIC‑TEST Lever‑Type Dial Indicator (5mm Range, 0.01mm Resolution)

A precision Japanese‑made lever‑type dial test indicator from Peacock (Katsura Seiki), the PIC‑TEST series is engineered for fine comparative measurement in machining, toolmaking, and inspection environments. With a 5 mm measuring range, 0.01 mm resolution, and an 8 mm cylindrical mounting stub, this indicator delivers smooth, repeatable readings for runout, alignment, flatness, bore position, and fixture verification on mills, lathes, grinders, and surface plates.

Lever‑type indicators provide minimal measuring force and fast response, making them well suited to delicate surfaces and tight setups. The compact body and side‑mounted lever allow easy access into confined areas for spindle runout checks, mill tramming, jig alignment, and precision inspection tasks. PIC‑TEST indicators are noted for crisp dial presentation and reliable internal mechanics.

Brand Information

Peacock (Katsura Seiki) is a long‑established Japanese manufacturer of precision measuring instruments, producing dial indicators, test indicators, gauges, and metrology accessories used across machining, inspection, and toolmaking industries. PIC‑TEST indicators are valued for smooth movement, stable geometry, and dependable workshop performance.

Features and Performance

• Lever‑type mechanism — Light measuring force and rapid response for fine deviation checks.
• 5 mm measuring range — Suitable for comparative measurement and runout inspection.

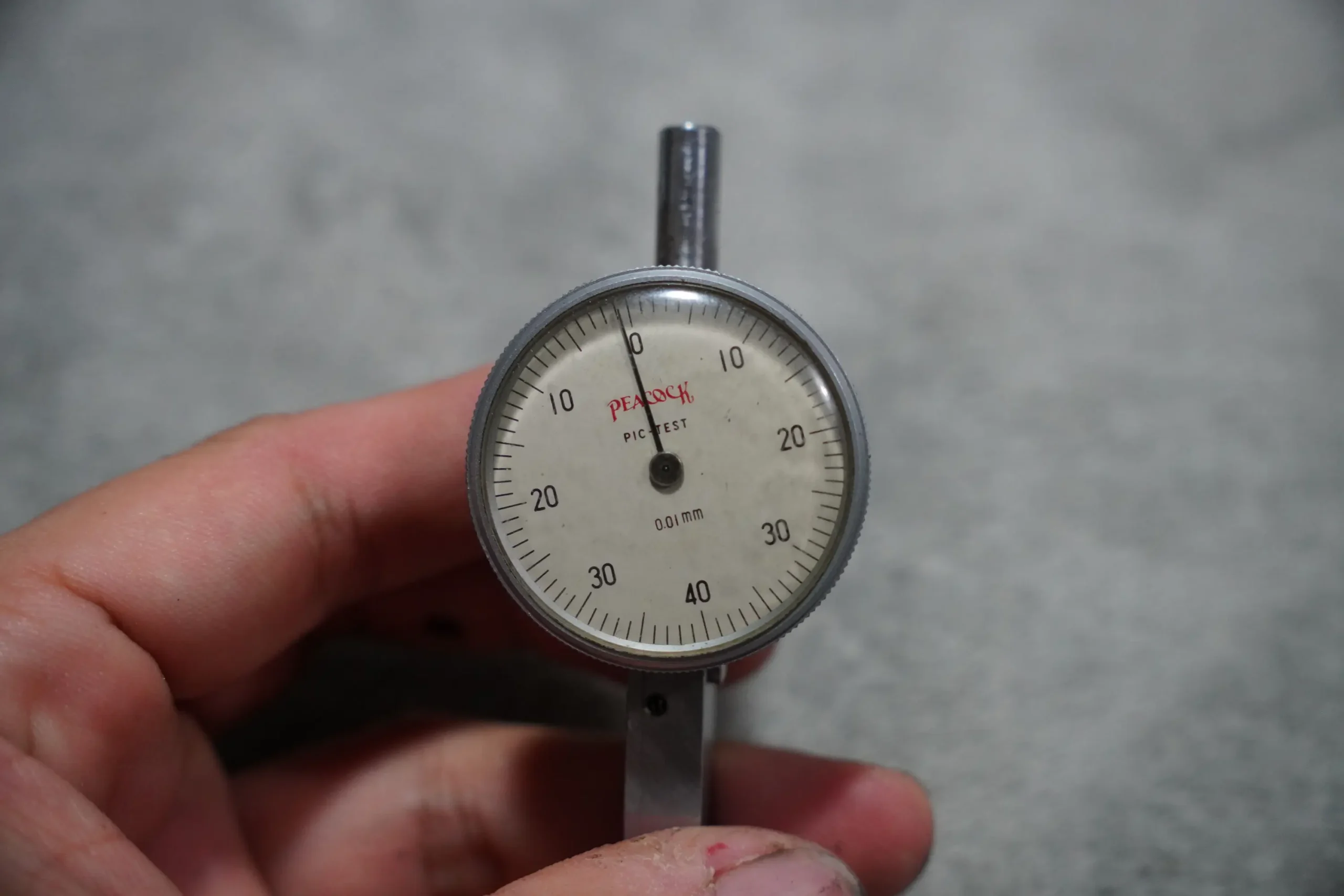

• 0.01 mm resolution — Clear graduations for accurate workshop readings.

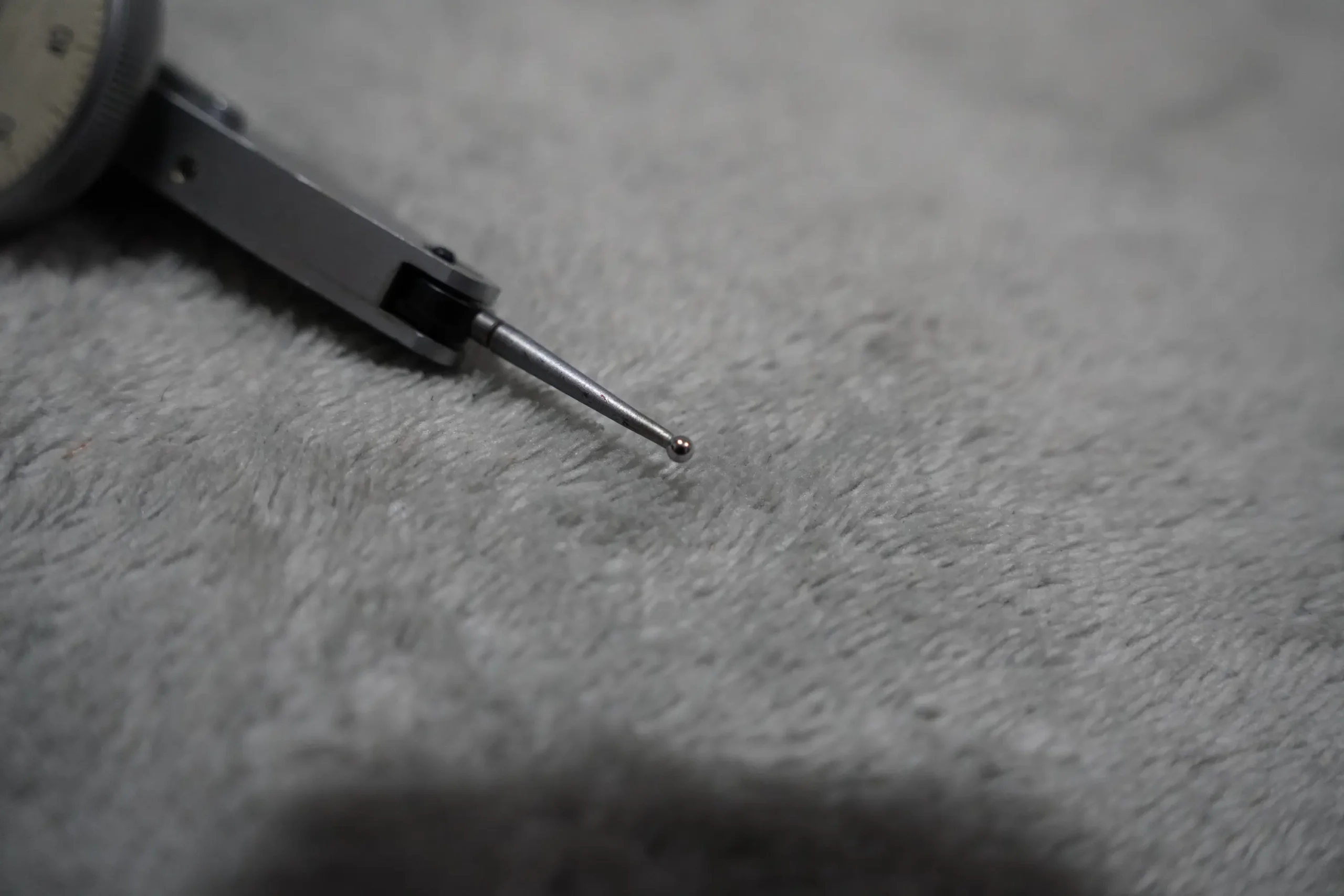

• Hardened steel contact point — Durable and wear‑resistant for repeatable contact geometry.

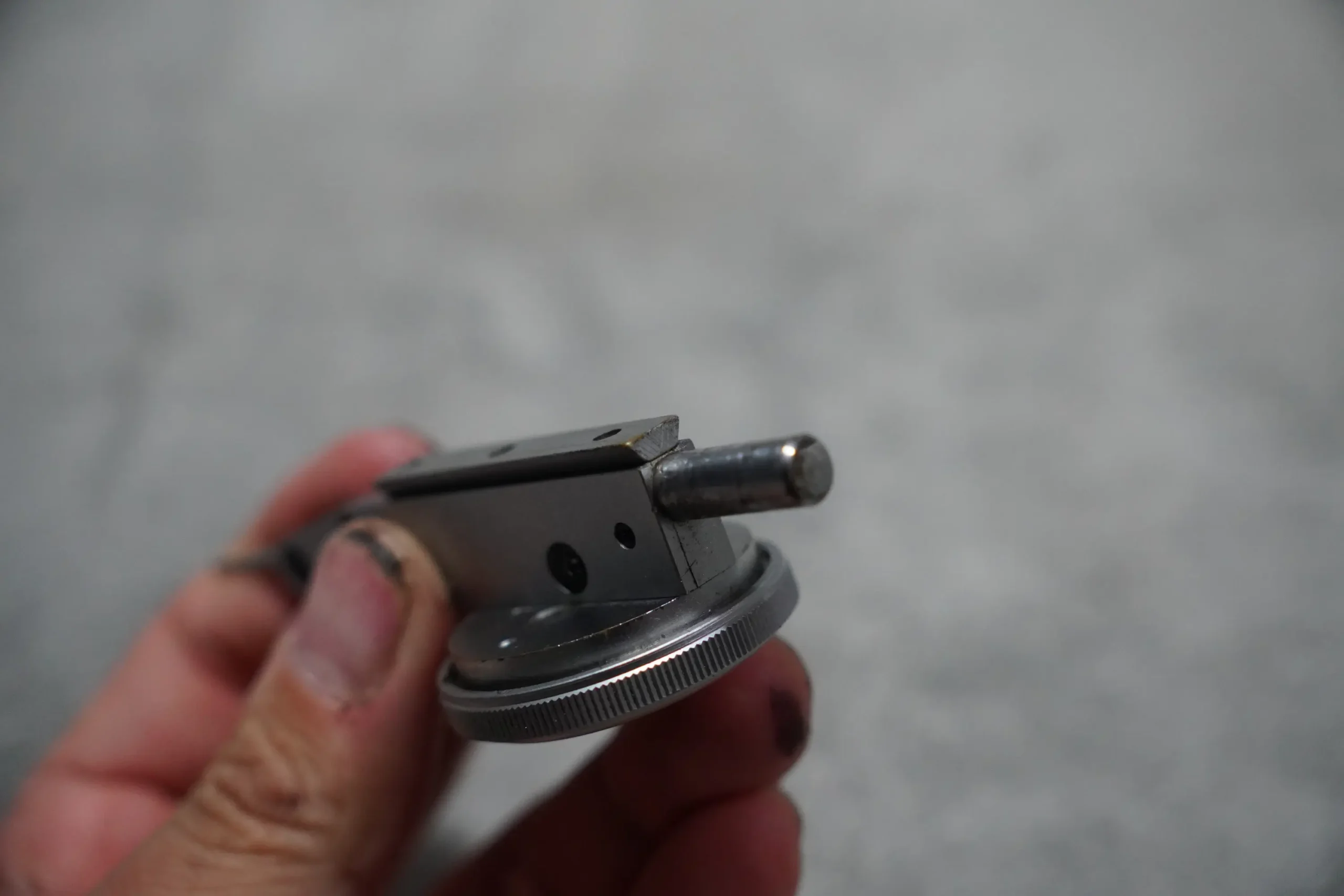

• 8 mm cylindrical mounting stub — Standardised mounting for secure attachment to bases and arms.
• Universal dovetail compatibility — Works with most indicator stands and holders.
• Compact form factor — Access tight setups and confined inspection areas.

Included

• 1 × Peacock PIC‑TEST Lever‑Type Dial Indicator (5 mm, 0.01 mm, 8 mm stub)
• No additional accessories supplied

Not included: Magnetic base, indicator arm, spare contact points, or storage case.

Specifications

Peacock PIC‑TEST; lever‑type dial indicator; 5 mm range; 0.01 mm resolution; 8 mm mounting stub; hardened steel contact point; Japanese test indicator; machinist indicator; workshop metrology tool; Katsura Seiki indicator.
